Control station WellSim

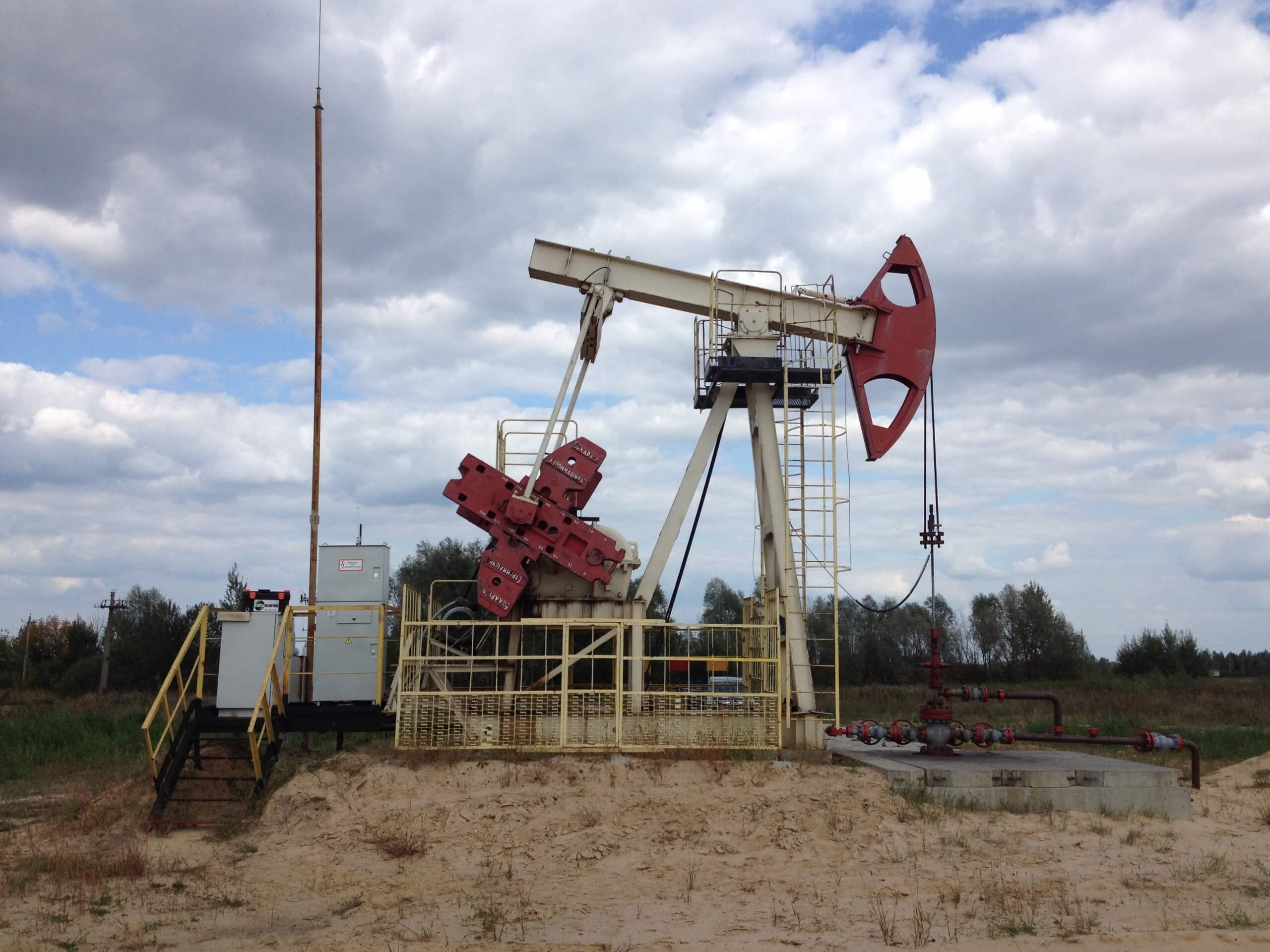

The WellSim control station is designed for oil production automation and integrates a complete set of modules for control  and protection of sucker rod pump systems, including both power and control  sections.

At the  heart of the system is the WellSim  Rod Pump Controller, which continuously analyzes data from connected  sensors and equipment. Using advanced mathematical modeling of the well, the controller:

‍

• Generates surface and downhole dynagraph cards
• Calculates key operating parameters of the well and pumping equipment
• Determines optimal pump operation strategies in real time

‍

These  intelligent algorithms help operators:

‍

• Increase  oil production by 2–4%

• Reduce energy consumption by up to  67% (depending on well conditions)
• Extend equipment lifetime and reduce failure frequency

‍

The  WellSim Control Station combines advanced pump control with a robust  electrical protection system for the pumping unit. Key protection features  include:

‍

• Motor  protection based on allowable voltage limits

• Phase sequence and phase symmetry monitoring
• Phase imbalance protection
• Short-circuit protection
• Emergency shutdown in case of faults

• Automatic and manual control modes
• Energy consumption monitoring and data storage
• Detection of leakage currents and insulation damage

‍

Configurations  equipped with a Variable Frequency Drive (VFD) provide the most advanced level of rod pump control. The  VFD enables the controller to dynamically regulate motor speed, delivering several key operational advantages:

‍

• Soft  motor start (especially important at low temperatures)

• Dynamic speed adjustment depending on load conditions
• Slowing down at peak loads and accelerating during low-load periods
• Maintaining optimal pump fillage through motor speed control
• Speed variation during a pumping cycle to optimize plunger movement
• Stable low-speed operation to improve efficiency of depleted wells

‍

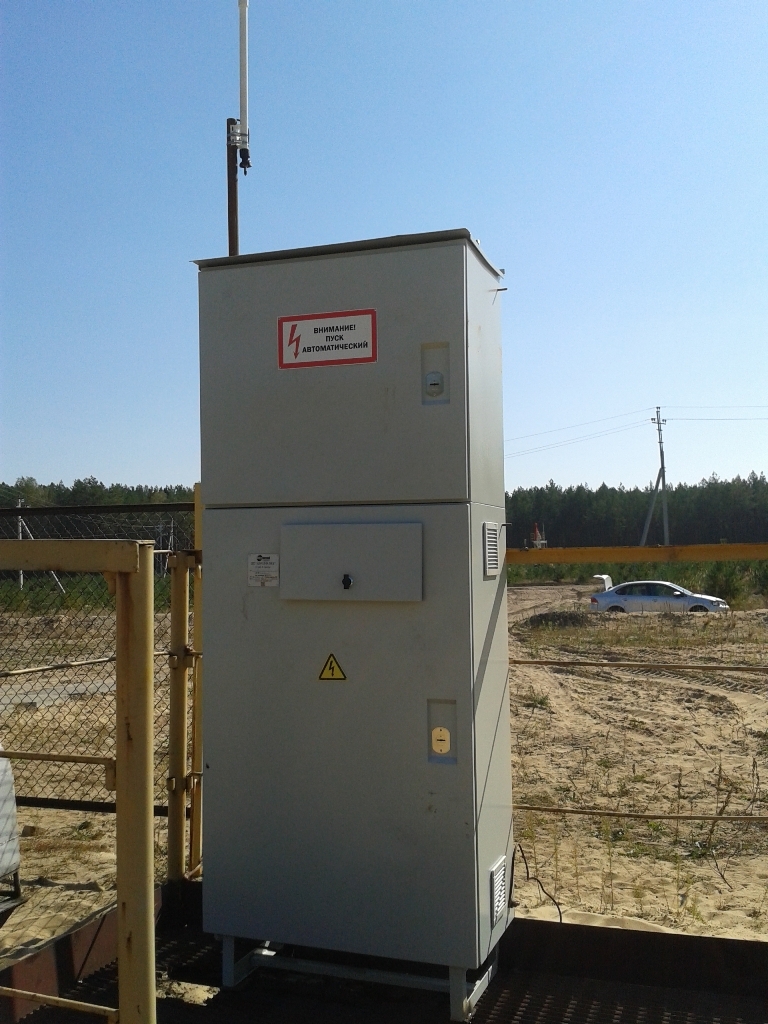

WellSim  Control Stations can be supplied in various cabinet designs, including vandal-resistant enclosures, modular cabinets, monoblock designs Systems can also be equipped  with ergonomic and operational options such as:

‍

• Internal  cabinet lighting

• Customizable manual control panels
• Analog instruments (ammeters, voltmeters)
• Energy meters and other auxiliary equipment

‍

These  flexible configurations allow the system to be adapted for different field environments, operational requirements, and customer preferences.
