The HS125 Hall sensor kit is designed to determine the crank position of a pumping unit and the rotational speed of the motor rotor.
Technical Specifications
Description
The HS125 is intended for operation with rod pump controllers and is used for dynagraph card generation and analysis. The system is resistant to external environmental influences, operates reliably across a wide temperature range, and is designed for easy installation and maintenance.
The HS125 sensor kit includes the following components:
• Hall-effect rotor speed sensor (with cable)
• Hall-effect crank position sensor (with cable)
• Ferrite magnet mounted on a steel clamp
• Neodymium magnet
• Two aluminum mounting brackets
• Small steel holder
• Large steel holder
• Steel mounting bracket
Documents
Gallery

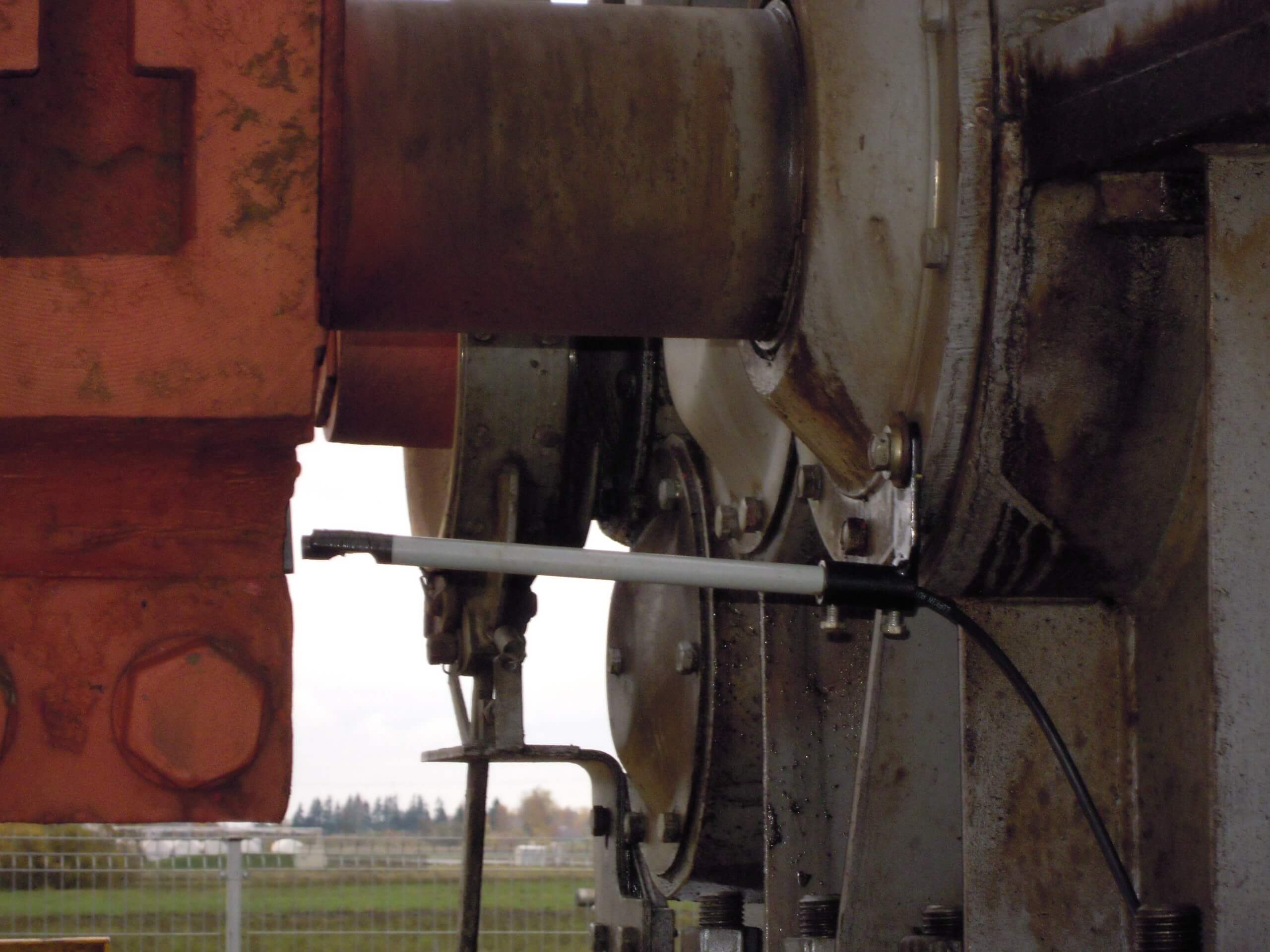

Crank position sensor

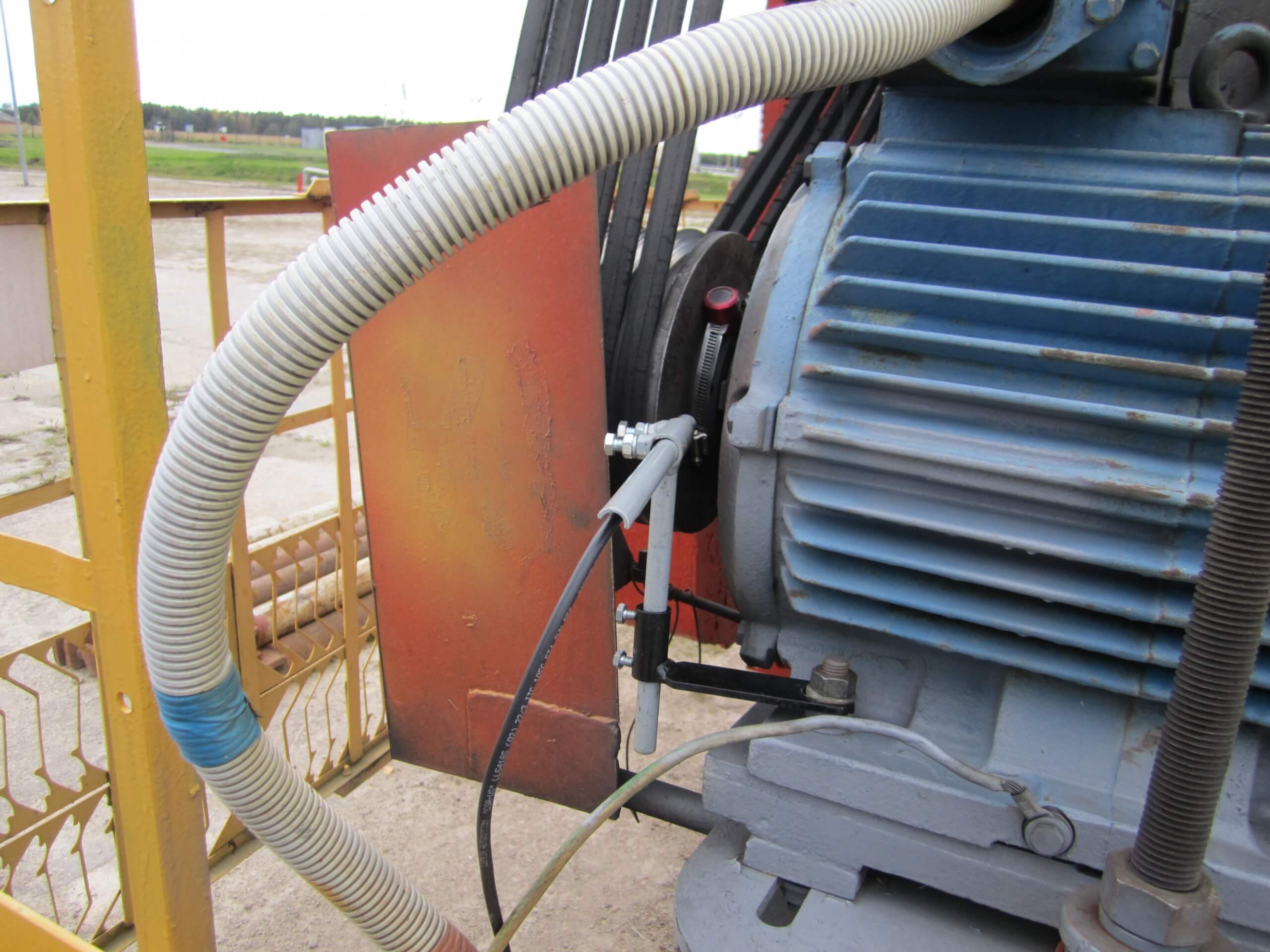

Electric motor rotation sensor
