The EMS122 load and position sensor is designed to measure the load on the polished rod and determine its position
Technical Specifications
Description
The EMS122generates an amplified signal from a strain gauge bridge used to determine the load, as well as a signal from an integrated accelerometer used to calculate the position of the polished rod. For convenience and reliability, both sensors are integrated into a single standardized housing.
High measurement accuracy is achieved through precision manufacturing, temperature compensation, and individual testing of each sensor during production.
The standardized housing allows the EMS122 to be easily installed as a replacement for load and position sensors from other manufacturers.
The monolithic housing design simplifies installation and maintenance of the EMS122.
The sensor is connected to the controller using a specialized high-flexibility cable, ensuring reliable operation in demanding field conditions.
Documents
Gallery

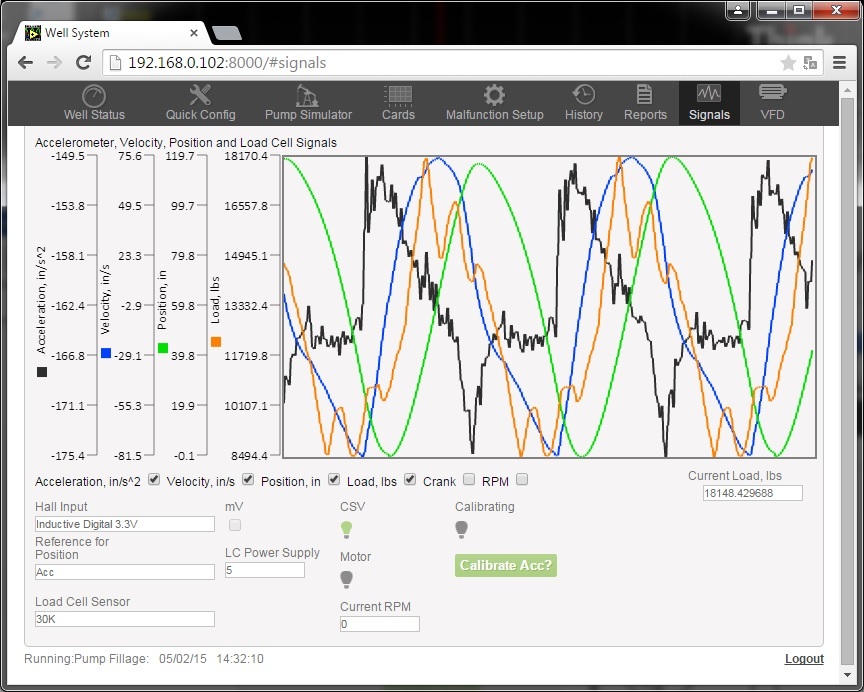

Load and position signals in the graphical user interface
Polished rod load and position EMS122
