Load sensor EMS121

The EMS121 load sensor is designed to measure the load on the polished rod of a sucker rod pumping unit and transmit this data to the rod pump controller

Technical Specifications

Measurement Range

0–133.6 kN (30 klbs), 0–222.4 kN (50 klbs)

Accuracy Class

0.5

Temperature Compensation Range

-40°C to +60°C

Operating Voltage

10–15 V

Operating Temperature Range

-50°C to +80°C

Enclosure

Stainless steel

Protection Rating

IP65

Explosion Protection

1Ex ia mb IIC T4 Gb X

Weight

2,65 kg

Description

The crosshead-mounted EMS121 load sensor measures polished rod load and transmits the data to the rod pump controller for monitoring and control purposes. The sensor is engineered for reliable performance in demanding oilfield environments, including desert regions,Arctic conditions, and environments with aggressive chemicals and explosive gases.
‍
High measurement accuracy is achieved through precision manufacturing, temperature compensation of the strain gauge bridge, and individual testing of each sensor during production.
‍
The standardized housing allows the EMS121 to be easily installed as a replacement for load sensors from othermanufacturers. The sensoris connected to the controller using a specializedhigh-flexibility cable, ensuring stable signal transmission and reliable operation in field conditions.

Documents

Load sensor EMS121

Gallery

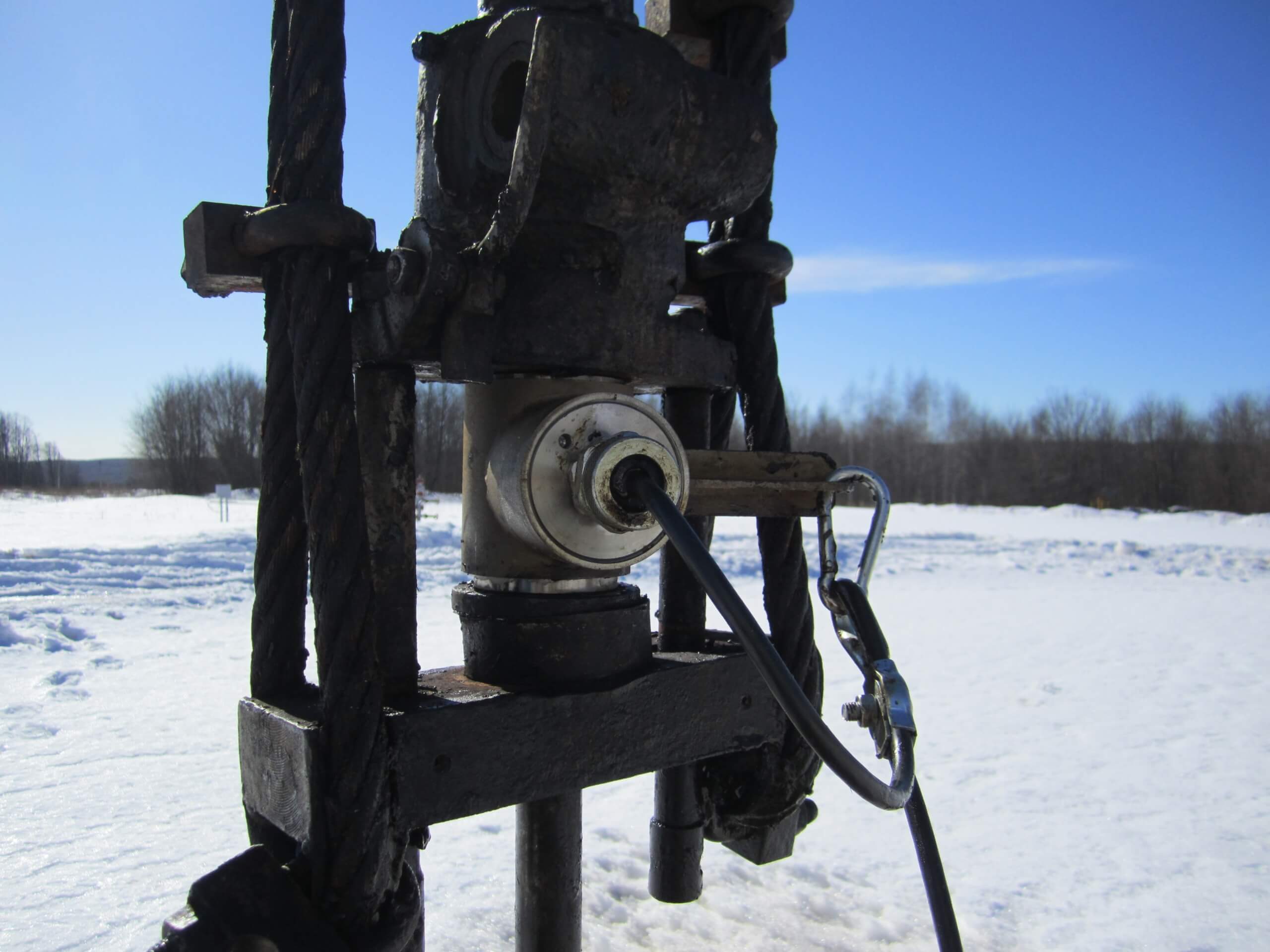

Polished rod load sensor EMS121
