WellSim service software

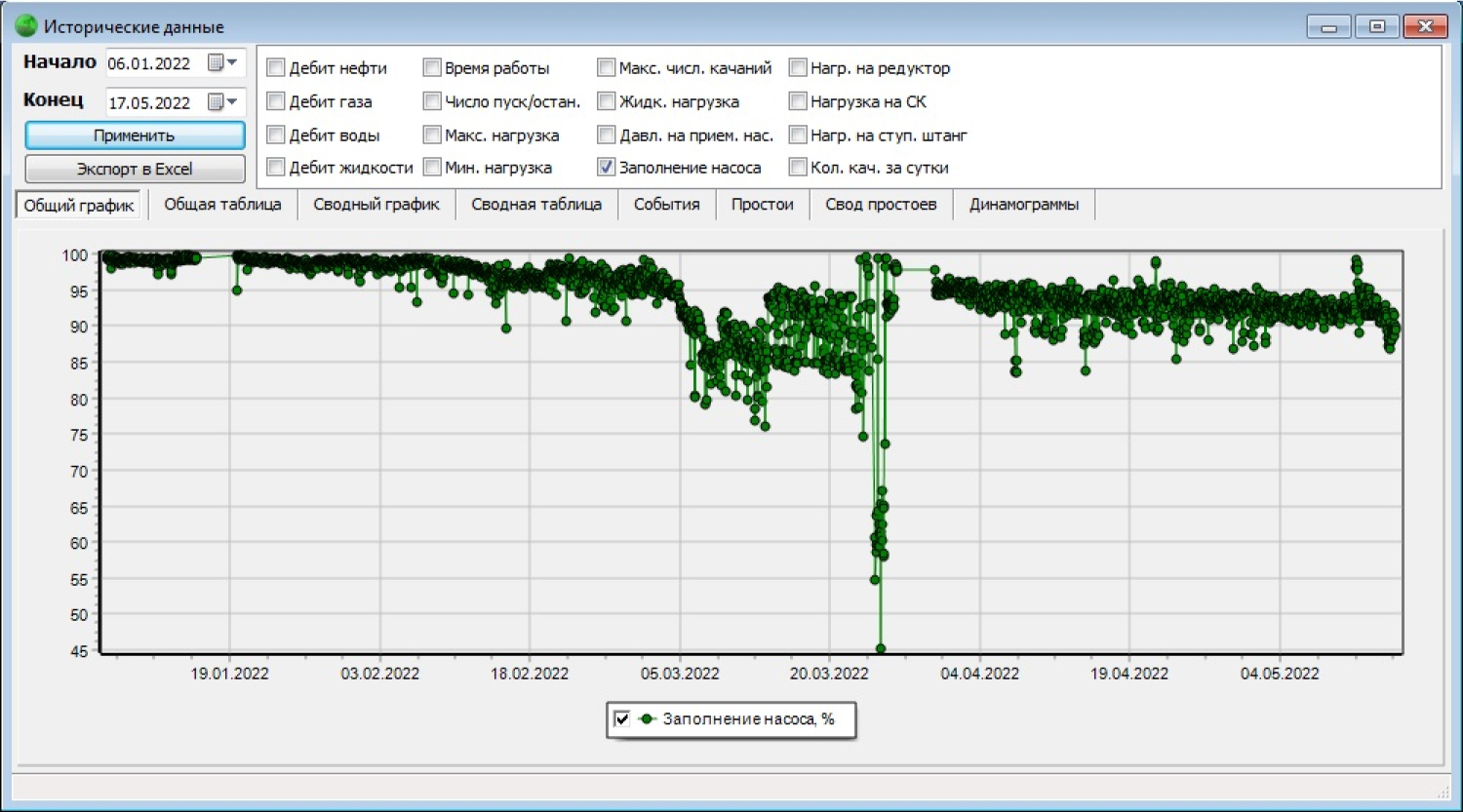

WSs allows users to view the history of well operating parameters controlled by a WellSim controller in both graphical and tabular formats, save the data, export it, and review it offline.

‍

The software also provides tools for viewing event logs, including controller startup and shutdown events, changes in operating modes, and recorded malfunctions. Downtime periods associated with these events can be analyzed individually or summarized on a daily basis.

‍

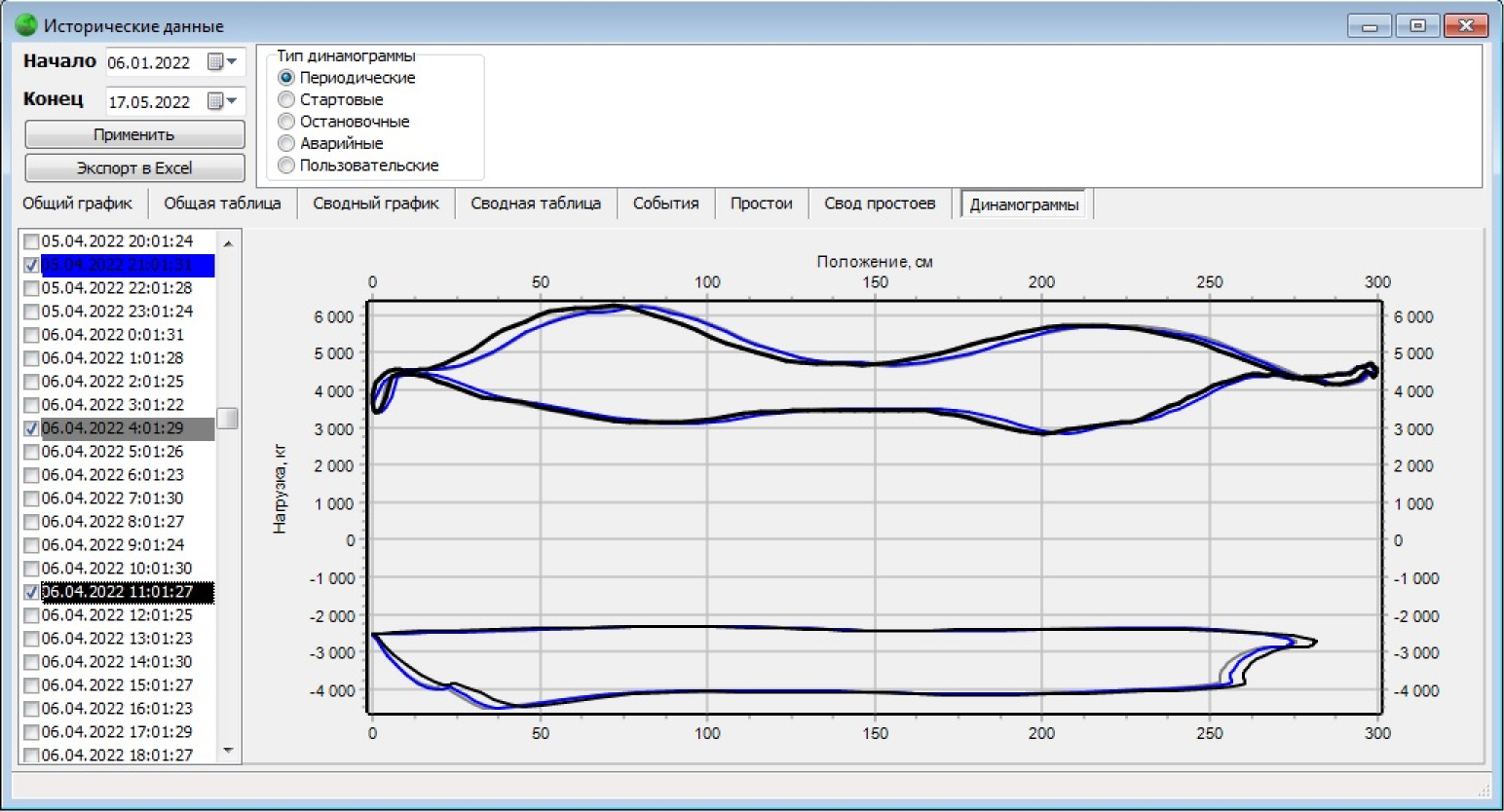

The dynagraph viewer allows users to export dynagraph cards from the controller archive and compare them by overlaying up to nine dynagraphs simultaneously on a single graph.

‍

Key Features:

‍

• Viewing historical technological parameters in both graphical andtabular formats

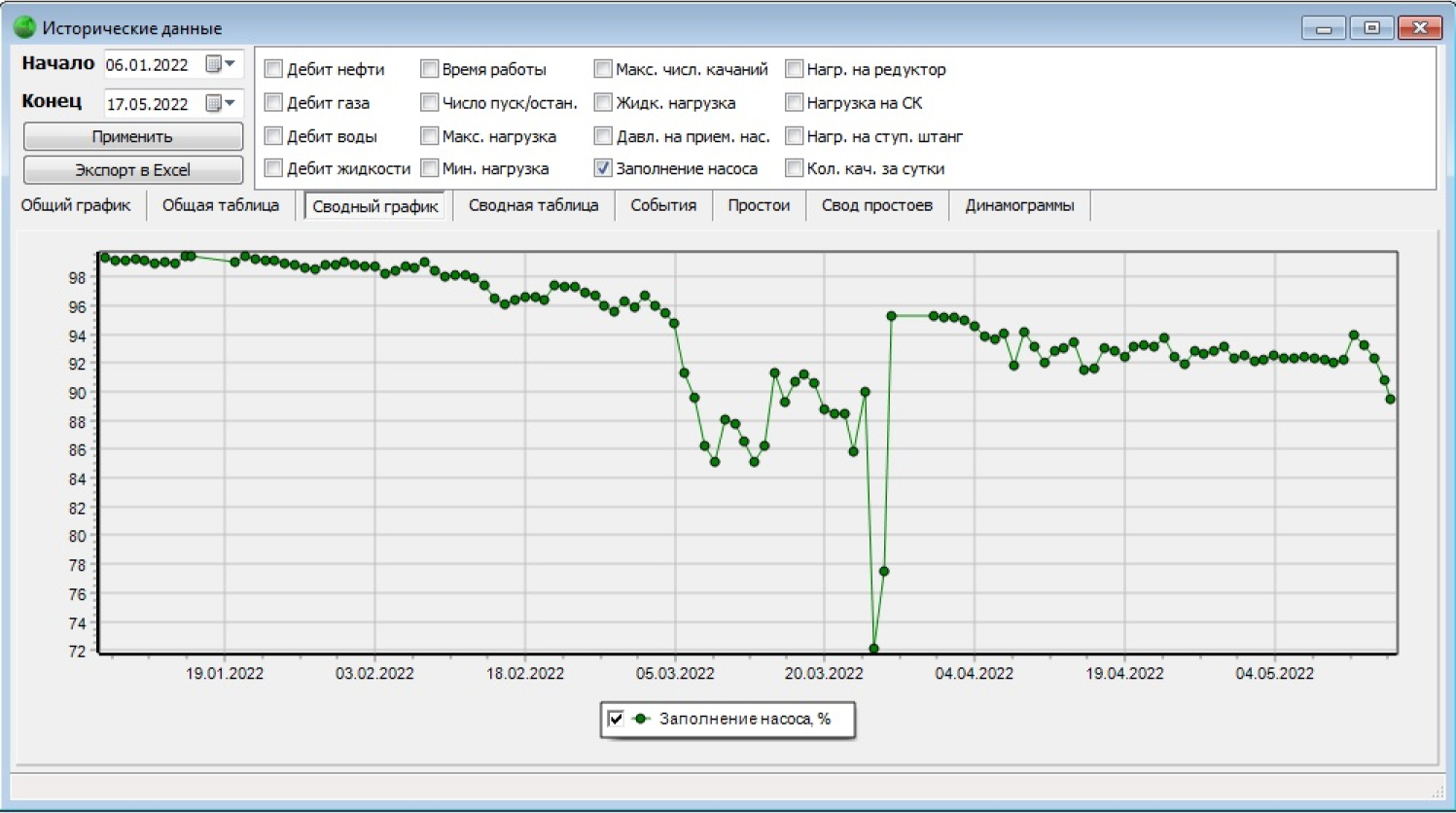

• Summation of technological parameters for report generation
• Event log monitoring

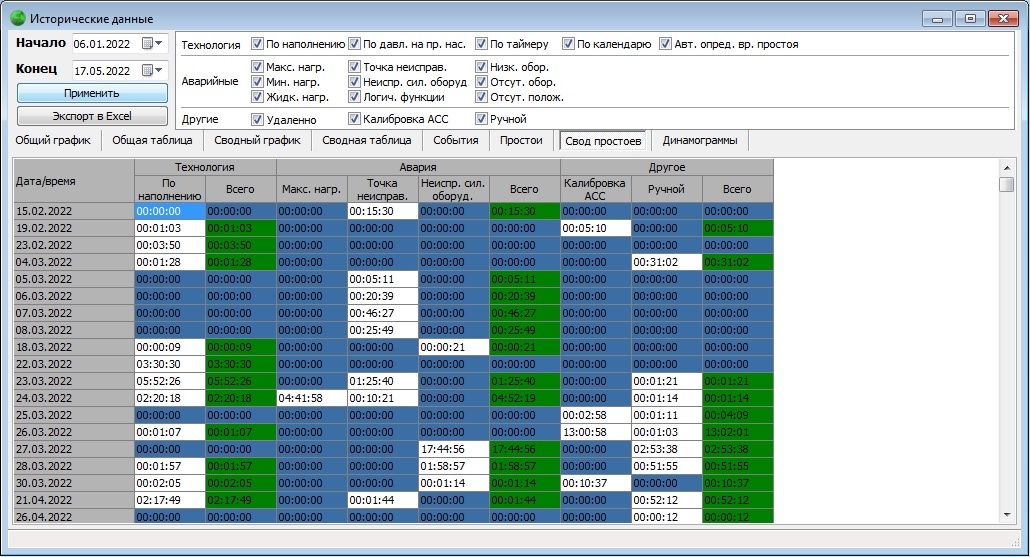

• Viewing downtime history and associated events
• Analysis of different types of dynagraph cards with overlay comparison
• Support for SI and Imperial measurement systems
• Export of tabular data to Microsoft Excel
• Saving the controller archive to a local computer hard drive
• Offline viewing of previously saved data
• Can replace higher-level systems for oilfields with a small number of wells
